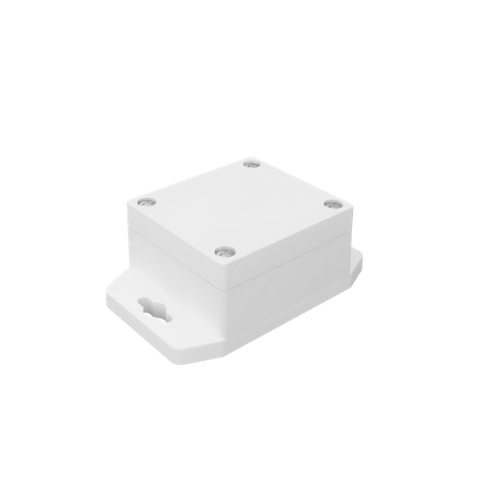

Tough Beacon
Asset Tracking in Manufacturing
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
With more than 7 years of battery life and a Bluetooth 5 compatible chipset, the Tough Beacon is the go-to outdoor beacon for asset tracking, wayfinding, and condition monitoring use cases.
Features:
Asset Tracking in Manufacturing
Track any assets.
Heavy Equipment Tracking in Manufacturing
Save time and improve security with added insight into heavy equipment location.
High Value Asset Tracking in Airports
Locate, inventory, and prevent theft of valuable assets.
Indoor Wayfinding in Airports
Enable mobile phone based wayfinding solutions.
Indoor Wayfinding in Education
Enhance and extend your wayfinding solution.
Indoor Wayfinding in Retail
Enhance and extend your wayfinding solution.
Indoor Wayfinding in Venues
Enhance and extend your wayfinding solution.
Order-Flow Tracking in Manufacturing
Know where in the process your products are and gain insight to improve work flow.
Parking in Airports
Optimize parking space and improve a user’s experience.
Proximity Marketing in Retail
Share marketing promotions or COVID-19 protocol updates with your customers.
Proximity Notifications in Airports
Share important messages with your employees and visitors, such as new COVID protocols or changes in office hours.
Visitor Analytics in Venues
Understand visitor density to better manage spaces.
Specifications:
| Dimensions |
Height: 94 mm (3.7 in) Width: 58 mm (2.28 in) Depth: 35 mm (1.38 in) Weight: from 101 grams (3.56 oz) |
|---|---|
| Microcontroller | Nordic Semiconductor nRF52832 |
| Connectivity |
Standard: Bluetooth 4.2 compliant, Bluetooth 5 compatible Range: up to 70 meters Available transmission power levels: 1 (-20dBm), 2 (-16dBm), 3 (-12dBm), 4 (-8dBm), 5 (-4dBm), 6 (0dBm), 7 (4dBm) Sensitivity: -96dBm |
| Battery and Power |
Model: CR 2477 Type: Lithium Manganese Dioxide Coin Battery Total Capacity: 2000mAh Replaceable: Yes Battery Life (Tx=-12dBm; interval: 350ms): up to 50 months |
| Sensors | Accelerometer, Temperature |
| Functionalities | RTC, dataflash memory |
| Casing |
Material: PC Colors: Light grey Protection: IP-65 Flame resistance: Fire class UL 94 HB Mounting: 1 mounting hole Customization: No Antibacterial surface: No |
| Environmental Requirements |
Operating Temperature: -20°C / +60°C (-4°F / +140°F) Humidity (non-condensing): from 0% to 95% |
| Beacon Standards Compatibility |
iBeacon: Yes Eddystone: Yes Kontakt.io Secure Profile: Yes Custom frames possible for large orders: Yes |
| Warranty | 12 months |
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
