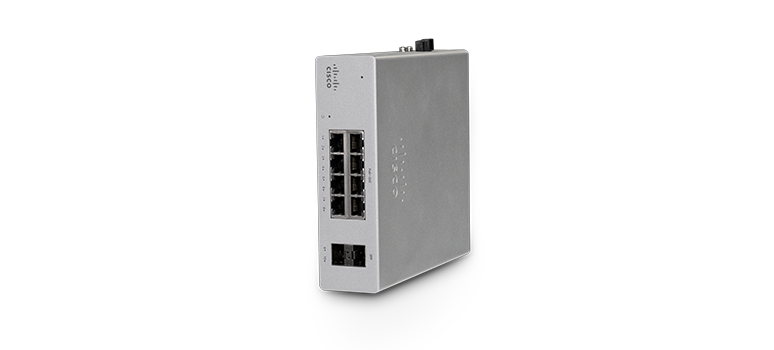

MS130R
Extend reliable connectivity and PoE wherever you need it

Features:

Build for harsh environments

• Protective ground connection design
• Flexible powering options: terminal block and DC power jack
• 8x 1 G ports and 2x 1 G SFP uplink
• Flexbile mounting options: rack, wall, and DIN rail mounting options

Cloud-managed

• Remote packet capture tools via the Meraki dashboard
• IPv4/6 ACL support
• Review, schedule, and update firmware for all your switches in one location
• Flexibility and ecosystem extensibility​ with Meraki API and ecosystems

Power/PoE

• Monitor and plan PoE usage from anywhere
• Power PoE devices with up to 30 W per port​
• Diversify power supply options with an external AC adapter or DIN rail AC power supply

Enterprise hardware and support

• Layer 7 visibility and built-in application layer visbility
• Rich telemetry source and endpoint modeling
• Visualize the connection path of each endpoint to the internet
• Voice and video QoS
• Non-blocking switch fabric

Specifications:

Specification	MS130R-8P
1GbE RJ45 Ports	8
1GbE SFP Ports	2
Dedicated Mgmt Interface	-
PoE Type	802.3bt *
PoE Port Budget	30W *
PoE Switch Budget	240W
Power Input	50-54VDC, 5.6A
Power Load (idle/max)	12W / 257W
Power Consumption	12W - 257W
Storage & Transportation Temperature	-40°F to 185°F -40°C to 85°C
Humidity	5% to 95%
Mounting	Desktop, Wall mount, DIN rail options
Switching Capacity	20Gbps
Power Supply	External AC Adapter or DIN rail AC power supply options
Fan Operation	Fanless
Dimensions (H x W x D)	1.75 x 6.18 x 6.69 in (4.4 x 15.7 x 17 cm)
Weight	2.12 lb (0.96 kg)

Documentation:

Download the MS130R (.PDF)
